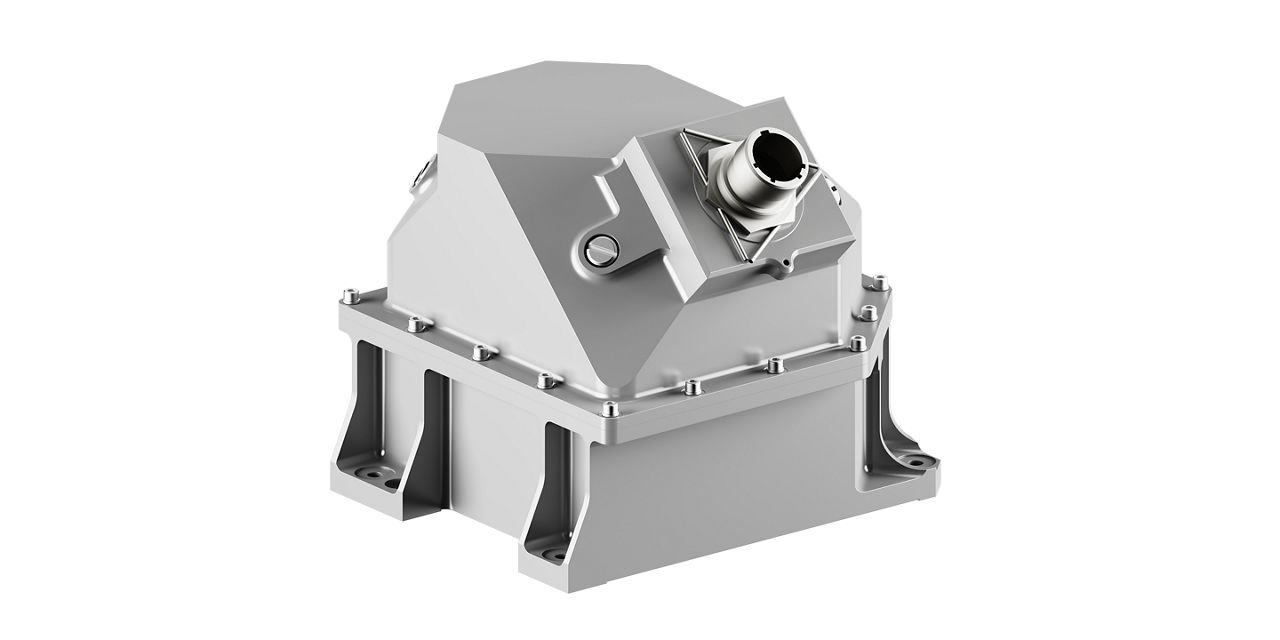

HG9900 Inertial Measurement Unit
This state-of-the-art inertial measurement unit provides navigation grade performance with proven inertial sensor technology in a small, lightweight package.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
The HG9900 is a high performance navigation-grade Inertial Measurement Unit (IMU) designed to meet the needs of a broad range of navigation, guidance and control applications. The HG9900 has been successfully deployed on a wide range of weaponry, UAVs, stabilized platforms and commercial applications.
The HG9900's three Ring Laser Gyroscopes (RLGs), three Quartz Accelerometers (QAs) and associated electronics are all environmentally sealed in rugged aluminum housing. In addition, it employs an internal environmental isolator system to filter unwanted sensor inputs commonly encountered in real world applications.
Honeywell designs, develops and manufactures all of the inertial sensors utilized in the HG9900 IMU. All of this culminates in the HG9900 providing industry leading inertial sensor performance while maintaining minimal SWAP parameters.
The HG9900's three Ring Laser Gyroscopes (RLGs), three Quartz Accelerometers (QAs) and associated electronics are all environmentally sealed in rugged aluminum housing. In addition, it employs an internal environmental isolator system to filter unwanted sensor inputs commonly encountered in real world applications.
Honeywell designs, develops and manufactures all of the inertial sensors utilized in the HG9900 IMU. All of this culminates in the HG9900 providing industry leading inertial sensor performance while maintaining minimal SWAP parameters.
Specifications
Physical
- Weight
- < 6 lbs
- Dimensions
- < 103 in 3 (5.5 x 6.4 x 5.34 in, including connector & mounting holes)
- < 103 in 3 (5.5 x 6.4 x 5.34 in, including connector and mounting holes)
- < 103 in3 (5.5 x 6.4 x 5.34” including connector & mounting holes)
Performance
- Accelerometer Operating Range
- Additional Options: ± 1.4 g, ± 30 g, ± 50 g, and ± 70 g
- Standard: ± 20 g
- Gyro Operating Range
- ± 550 °/sec
Power and Electrical
- Power Consumption (Typical)
- < 10 watts
Mechanical
- Operating Temperature
- Thermal Operating Range -40°C to +71°C
Connectivity and Systems
- Components
- Honeywell GG1320 Digital Ring Laser Gyros
- Honeywell QA2000 Accelerometers
- Honeywell Smart Inertial Electronics
- Proven 0.8 nmi/hr performance
Physical
- Weight
- < 6 lbs
- Dimensions
- < 103 in 3 (5.5 x 6.4 x 5.34 in, including connector & mounting holes)
- < 103 in 3 (5.5 x 6.4 x 5.34 in, including connector and mounting holes)
- < 103 in3 (5.5 x 6.4 x 5.34” including connector & mounting holes)
Performance
- Accelerometer Operating Range
- Additional Options: ± 1.4 g, ± 30 g, ± 50 g, and ± 70 g
- Standard: ± 20 g
- Gyro Operating Range
- ± 550 °/sec
Power and Electrical
- Power Consumption (Typical)
- < 10 watts
Mechanical
- Operating Temperature
- Thermal Operating Range -40°C to +71°C
Connectivity and Systems
- Components
- Honeywell GG1320 Digital Ring Laser Gyros
- Honeywell QA2000 Accelerometers
- Honeywell Smart Inertial Electronics
- Proven 0.8 nmi/hr performance
- Weight : < 6 lbs
- Accelerometer Operating Range : Additional Options: ± 1.4 g, ± 30 g, ± 50 g, and ± 70 g|Standard: ± 20 g
- Power Consumption (Typical) : < 10 watts
- Operating Temperature : Thermal Operating Range -40°C to +71°C
- Gyro Operating Range : ± 550 °/sec
- Dimensions : < 103 in 3 (5.5 x 6.4 x 5.34 in, including connector & mounting holes)|< 103 in 3 (5.5 x 6.4 x 5.34 in, including connector and mounting holes)|< 103 in3 (5.5 x 6.4 x 5.34” including connector & mounting holes)
- Components : Honeywell GG1320 Digital Ring Laser Gyros|Honeywell QA2000 Accelerometers|Honeywell Smart Inertial Electronics|Proven 0.8 nmi/hr performance
