LED Landing and Taxi Lights
PAR 46 LED Lighting

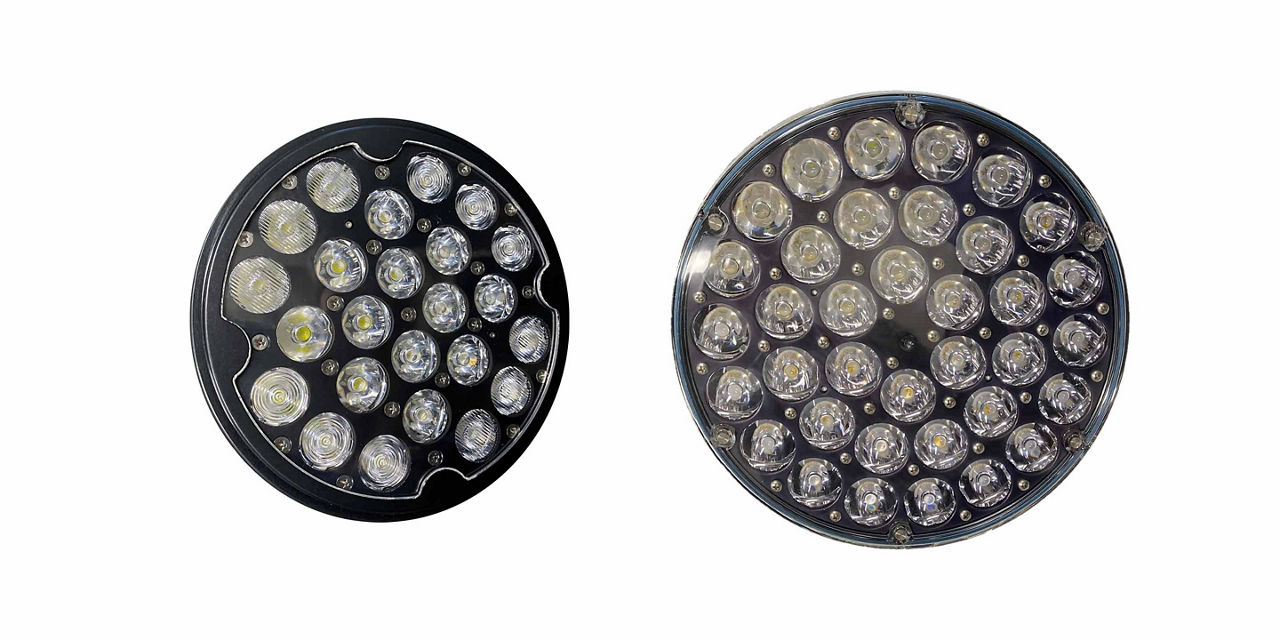

Improve aircraft safety with Honeywell’s PAR 46/64 LED lights.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
The new PAR 46 LED lights are a natural upgrade from obsolete halogen lights, offering reduced input power, improved maintenance cost and increased photometric life. As a drop-in replacement, operators don’t have to modify their current platform to upgrade their existing housings to receive PAR 46 capability. This eliminates the need for additional labor, reduces aircraft downtime and improves overall efficiency.
Honeywell lighting technologies are all about making aircraft safer and easier to manage for pilots and controllers. To fulfill on this promise, our LED PAR 46 lighting is designed to replace halogen lamps. Optimal for ATR, business and general aviation and military aircraft, we offer single mode functionality for the PAR 46 product family.
Key Honeywell Advantages:
Customers who need support should email:
aerotechsupport@Honeywell.comm
Honeywell lighting technologies are all about making aircraft safer and easier to manage for pilots and controllers. To fulfill on this promise, our LED PAR 46 lighting is designed to replace halogen lamps. Optimal for ATR, business and general aviation and military aircraft, we offer single mode functionality for the PAR 46 product family.
Key Honeywell Advantages:
- Drop-in replacement for current halogen lamps
- Optical output same or better than halogen versions
- Significant reduction in life-cycle maintenance and cost:
- Honeywell LED life = 50,000 hours VS:
- Halogen life = 10 to 100 hours
- Reduced input power (> 66% lower)
- Robust environmental protection
- Built-in thermal protection to sustain the minimum designed light output over the life of the LEDs
Customers who need support should email:
aerotechsupport@Honeywell.comm
Specifications
Performance
- PAR
- PAR 46
- Key Benefits
- Drop-in replacement for current halogen lamps
- Halogen life = 10 to 100 hours
- Reduced input power (> 66% lower)
- Robust environmental protection
- Thermal protection
Mechanical
- New Part Number
- 72552962-001
- 72552962-002
- 72552962-003
- 72552962-004
Power and Electrical
- Input Voltage
- 28 VAC
- Power Usage
- 150
Maintenance
- Replaces
- 4551
- 4554
- 4571
- Q5554
- Q5551
- Q4554
- LPQ4551
- LPQ4554
- LPQ5554
- LPQ5551
- Lifespan
- 50,000 hrs
Physical
- Weight
- 1.25 lbs
Performance
- PAR
- PAR 46
- Key Benefits
- Drop-in replacement for current halogen lamps
- Halogen life = 10 to 100 hours
- Reduced input power (> 66% lower)
- Robust environmental protection
- Thermal protection
Mechanical
- New Part Number
- 72552962-001
- 72552962-002
- 72552962-003
- 72552962-004
Power and Electrical
- Input Voltage
- 28 VAC
- Power Usage
- 150
Maintenance
- Replaces
- 4551
- 4554
- 4571
- Q5554
- Q5551
- Q4554
- LPQ4551
- LPQ4554
- LPQ5554
- LPQ5551
- Lifespan
- 50,000 hrs
Physical
- Weight
- 1.25 lbs
- PAR : PAR 46
- New Part Number : 72552962-001|72552962-002|72552962-003|72552962-004
- Input Voltage : 28 VAC
- Key Benefits : Drop-in replacement for current halogen lamps|Halogen life = 10 to 100 hours|Reduced input power (> 66% lower)|Robust environmental protection|Thermal protection
- Power Usage : 150
- Replaces : 4551 | 4554 | 4571 | Q5554 | Q5551 | Q4554 | LPQ4551 | LPQ4554 | LPQ5554 | LPQ5551
- Lifespan : 50,000 hrs
- Weight : 1.25 lbs
